1956-57 MASTER AIM Scan - PRINT Version


Intro thru Secion J - 100MB Section 1 thru Section 14 - 130MB RPO's - 70MB

The Print Version features all 8.5 x 11 inch pages at 200dpi - suitable for printing. Folded pages in the original were scanned into two pages. No word search capability in these files. Each separate file is approximately 10MB in size.

My 1957 original AIM differs from the reproduction AIMs currently being sold. I compared by original AIM to the copy offered by NCRS. My AIM has two sheets not found in the NCRS copy. The NCRS copy has several sheets not found in my AIM, however. The two versions also have different efffective dates on a number of sheets. To see the differences - NCRS 57 AIM Copy compared to Original 57 AIM

Given the incompleteness of the two 57 AIMs, I decided to create a single MASTER AIM that reflects all known 57 AIM sheets. Given the sharpness of detail in my original AIM, I used my original AIM as the starting point for the MASTER AIM. I used an NCRS AIM sheet if my original sheet was missing. If my original AIM and the NCRS AIM had different versions of the same sheet, I included both sheets in the MASTER AIM. I labeled the early version of the sheet as "PRIOR." I labeled the later version of the sheet as "UPDATED." Labels are generally in the upper left hand corner. Thus, for example, you will find two versions of Section E, Sheet 5.00 in the MSTER AIM. The first version is labeled "UPDATED" and the second version is labeled "PRIOR."


If you like your NCRS AIM copy and just want to add the missing and updated pages to that copy - Add NCRS AIM Missing Pages Download

If you printed my Original AIM and just want to add the missing and updated pages - Add Original AIM Missing Pages Download





AIM By Individual Sections - Printable (8.5 x 11) - About 10MB Each





Section O - General Index Section A - Underbody Section B - Front End Section C - Top


Section E - Rear End Section F - Side Doors Section J - Seats Section 1 - Body Mounting



Section 2 - Frame Section 3 - Front Suspension Section 4 Rear Suspension Section 5 - Brakes

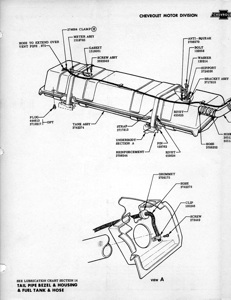

Section 6 - Engine Section 7 - Transmission Section 8 - Fuel & Exhaust Section 9 - Steering





Section 10 - Wheels & Tires Section 11 - Hood & Fenders Section 12 - Electrical Section 13 - Radiator





Section 14 - Bumpers & Misc RPO 101 - Heater FOA - 102 Radio FOA 104 - Oil Filter
